• MS-6 Chemical Feed Flowmeter, ProSeries® Ultrasonic
    MS-6 Chemical Feed Flowmeter, ProSeries® Ultrasonic MS-6 Chemical Feed Flowmeter, ProSeries® Ultrasonic MS-6 Chemical Feed Flowmeter, ProSeries® Ultrasonic MS-6 Chemical Feed Flowmeter, ProSeries® Ultrasonic

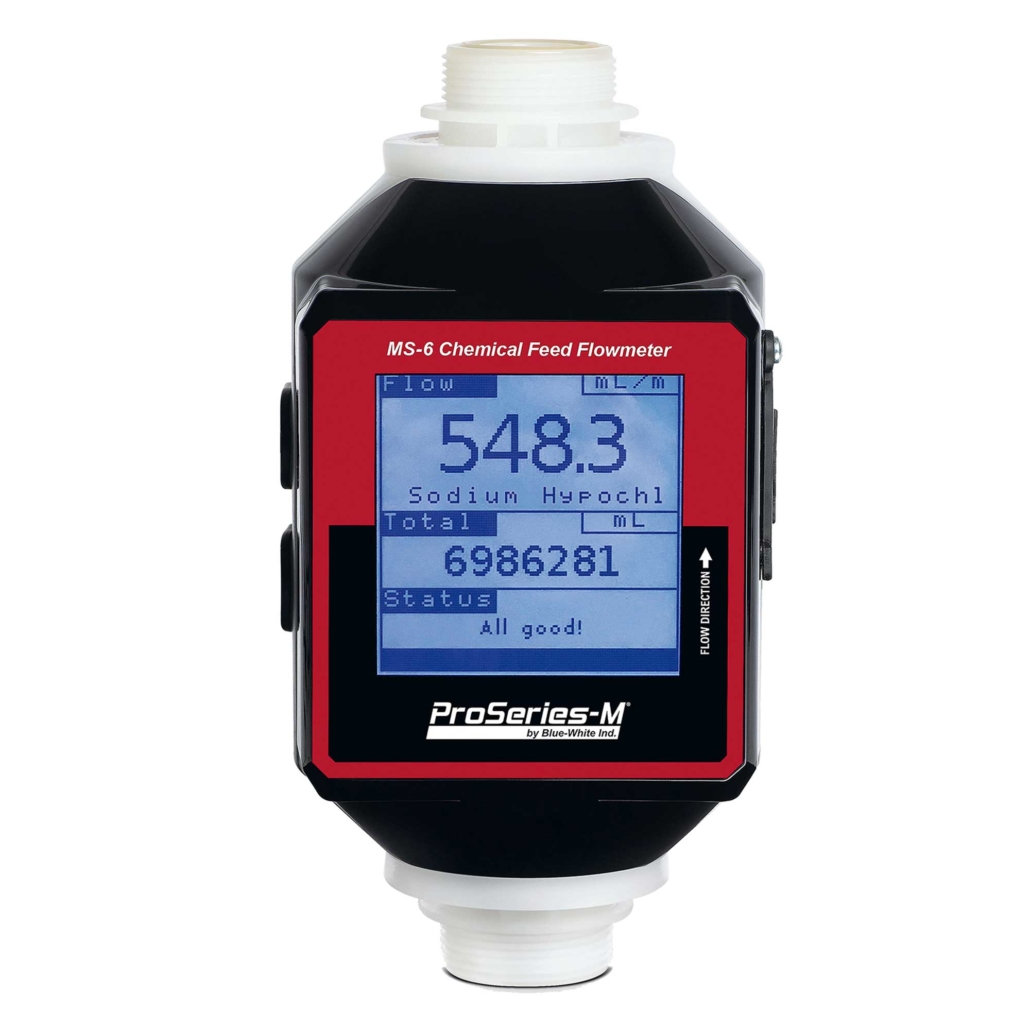

Ultrasonic flow meters utilize sound waves to measure the velocity of a fluid from which the volumetric flow rate can be calculated. This product does not include any moving parts and thus are more reliable, accurate and provide maintenance free operation. The pressure drop across the flow meter is less than 1 PSI and it has process control features. There are eight pre-calibrated chemical profiles are available in this flow meter. Also, the product has two mount display options: meter mount display and remote mount display.

Key Features

  • Flow Range: 10 – 5,000 mL/min (0.158 – 79.2 GPH)
  • Flow Range: 100 – 10,000 mL/min (1.58 – 158.5 GPH)
  • Sensor is NSF 61 Listed
  • Inline pipe fittings for easy installation
  • Acoustically conductive fluid or particulates/bubbles less than 50,000 ppm

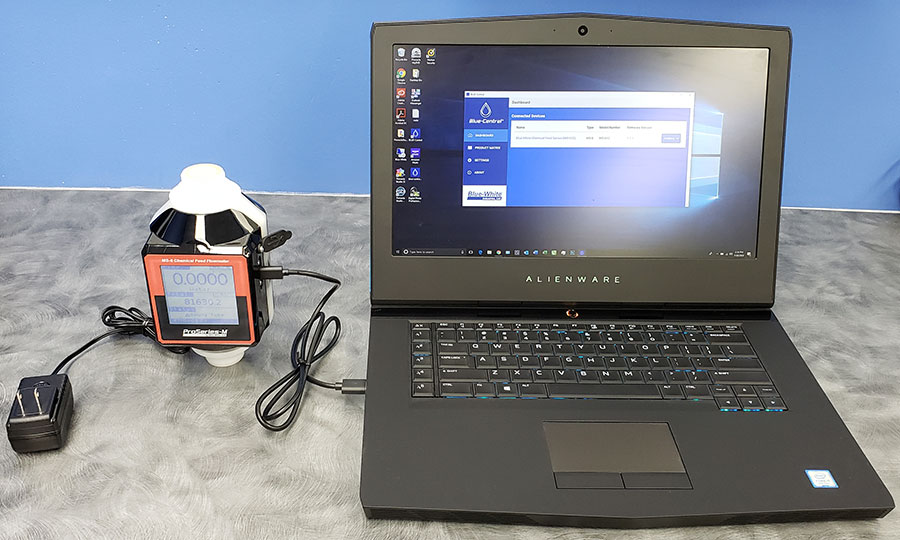

  • Configurable via Blue-Central® desktop software
  • Isolated 4-20 mA output – fully configurable
  • 0-10000Hz Pulse output – fully configurable
  • User configurable flow rate and total set-point triggers
  • Flow-rate readings as low as 10 mL/min

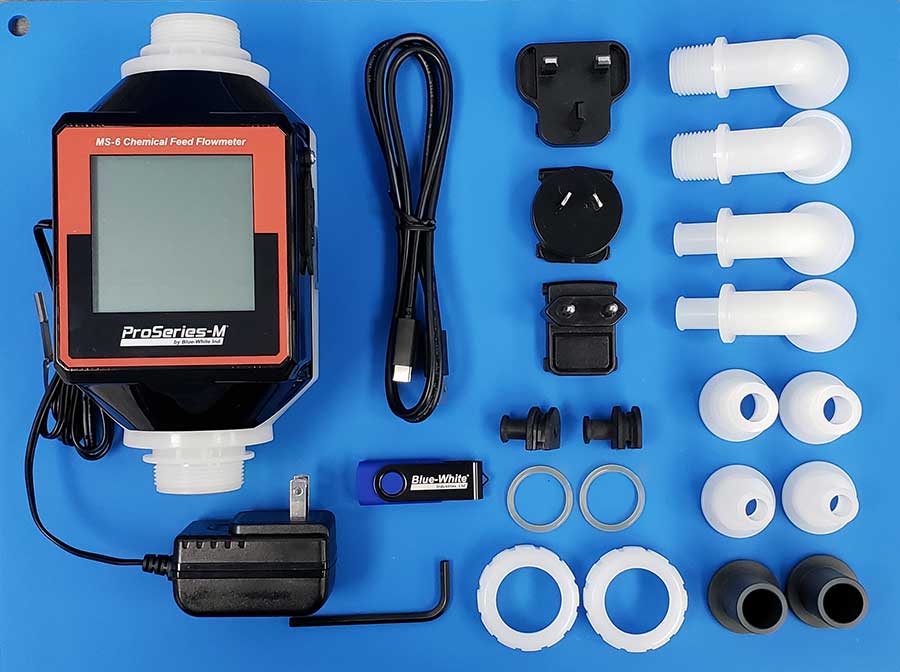

  • Included wetted end fittings allow for more than 14 inlet and outlet configurations
  • True unions for ease of maintenance
  • Wetted components constructed out of PVDF and PEEK
  • Quick visual inspection with built in status LED light
  • Process control via configurable solid state relay, which can be configured to close
    or open trigger at a flow-rate or to flow total for batching operation
  • 2 years limited warranty


Typical Applications

  • Flow verification
  • Chemical metering
  • Fluid metering
  • Leak detection
  • Ultra-pure water
  • Polymer feed
