The handheld corona discharge surface treater generates corona, i.e. high electric field, around an electrode when a very high frequency in Mega Hertz is applied. The corona is able to generate reactive groups on the surface of plastic or glass. Therefore, two treated surfaces can be covalently and permanently bonded. In microfluidic chip fabrication, this device is widely used for surface treatment due to its low-effectiveness and easy of use.

Key Features

Separate power control source and corona generator
Compact corona generator size for hand-holding
Incorporated metal tabs in the case for permanent mounting of electrodes
Adjustable output voltage in the range of 10 - 45 kV
Adjustable output power in the range of 5 - 30 W
High output frequency: 4.5 MHz
A power control source with ON/OFF switch
A transformer inside to providing isolation from line voltage
A line voltage filter to reduce interference with the power line while in use
Including three electrodes: linear wire electrode, drum electrode, and spring tip electrode

Applications

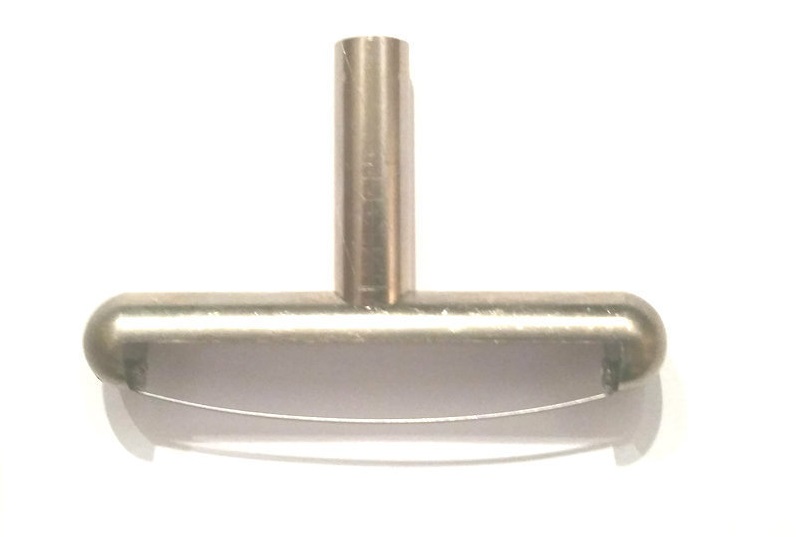

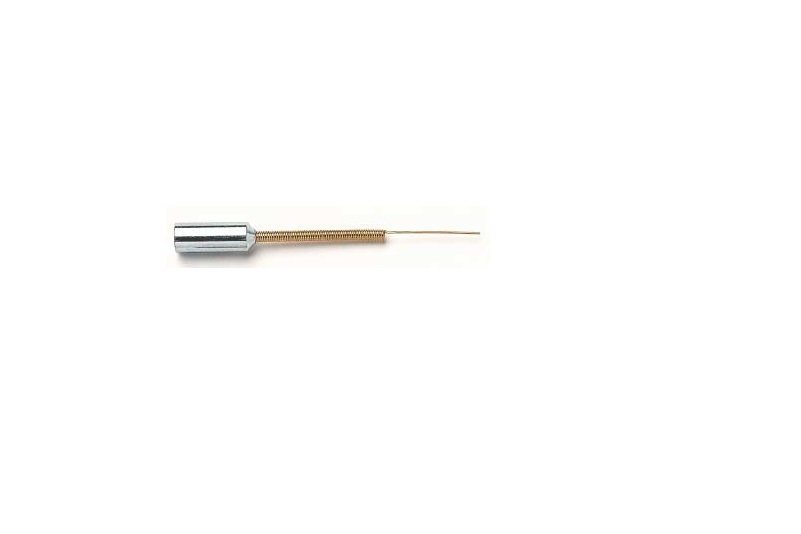

The primary application is surface corona treating to increase surface energy of the material. The Spring Tip wire spring is used to treat cavities and inner diameters of tubes while the Drum Round Electrode to treat flat surfaces. The Linear Field Effect Electrode to treat flat and curved surfaces.

PDMS or glass surface treatment in microfluidic chip fabrication and bonding
Improve bonding for plastic, polymer and composite materials
Increase the ability of adhering for ink printing on slippery plastics' surface

Input Voltage	115/230 VAC, 50/60 Hz
Input Power	40 W
Output Voltage	10 - 45 kV, adjustable
Output Power	10-30 W, adjustable
Output Frequency	4.5 MHz
Power Supply Dimensions	4 x 8 x 3 (inch)
Generator Dimensions	11 (L) x 2.5 (ɸ), without electrode
Power Cord	6 ft
Overall Weight	8 lbs
